Autoblindo Fiat-Ansaldo AB 43 PzSp Wg AB43 203 (i)



Autoblindo Fiat-Ansaldo 43 PzSp Wg AB43 203 (i)
English Version
Merci au site Modellismo + et Giorgio Briggà


L'évolution de l'AB41 fut décidée dès 1942 alors que les premiers engins arrivaient à peine en corps de troupe. Il fut décidé de rendre cet engin plus adapté aux plaines d’Afrique du Nord. La première modification fut l’augmentation la puissance du moteur et en même temps il fut décidé de renoncer au poste de double conduite et à l'armement défensif à l’arrière
Cet engin fut immédiatement commandé entre mai et juillet 1942 à 400 exemplaires.
Mais les événements en Afrique du Nord vont bousculer les prévisions .
Le Prototype dénommé AB42 fut donc construit à 1 exemplaire . L'antenne se trouvait déplacée à l'arrière droit les phares avant ont laissé la place à un phare unique au centre du glacis et une seule roue de secours prend place sur le côté droit du véhicule alors que le côté gauche reçoit des jerrycans. Ce modèle fut un modèle de transition . Il faut aussi décidé de construite un modèle AB 42 Commando pour les commandants de compagnie ; une commande de 150 engins avait même été passée .
Entre temps un modèle dérivé directement de l AB 41 est construit . C’est le modèle Ab43 qui est l’ultime avatar de cette série
La grosse différence entre les deux modèles est l’adoption d’une tourelle élargie étudiée pour le modèle de 42 et équipée d'un canon de 47/ 40.
Cette tourelle prévue pour la guerre dans le désert était beaucoup plus basse que celle de l’ AB41 sans fente d'aération sur les côtés .
On accédait à la tourelle par une trappe supérieure équipée de 2 portillons Comme l’AB41 l’engin possédait un double poste de conduite ; L’accès à ce poste se faisait toujours par deux portillons de style écurie Le plancher était protégé contre les mines et des DREB (défense rapprochées des engins blindés) étaient fixées sur l'arrière du châssis. Sur les garde-boue avant se trouvaient des supports de jerrycans
Le moteur reçoit un cerveau frein a partir du châssis 55784
La production de l’AB43 commençant après l'armistice donc le RE n' a pas pu prendre en compte ce type d 'engin. Les allemands firent fabriquer une version améliorée du Type 41 sous le nom de AB43 (les italiens la denomèrent Abm 43 ou AB41/43 pour la distinguer du prototype AB43 armée d'un canon de 47 mm qui avait été présentée en mai 1943) .60 furent construites en 1944 et 42 en 1945 plus quelques châssis incomplets bien loin des prévisions allemandes qui escomptaient sur 310 engins se decomposant en 240 armés de canon de 20 mm et 70 de canon de 47mm . L'engin extérieurement ressemble dont à l 'AB41 sauf pour la tourelle
Les engins survivants furent ensuite récupérés par les troupes italiennes et furent utilisés par les carabiniers et la Celere après la guerre
il a existé aussi une version ravitailleur de l’ AB 41 une version porte de munitions qui a rendu de grands services..

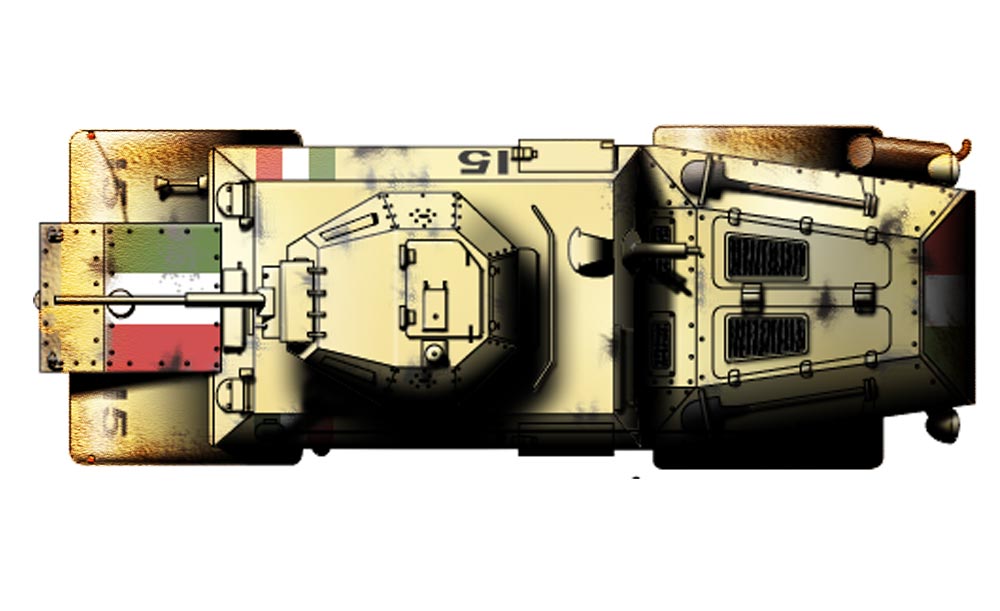

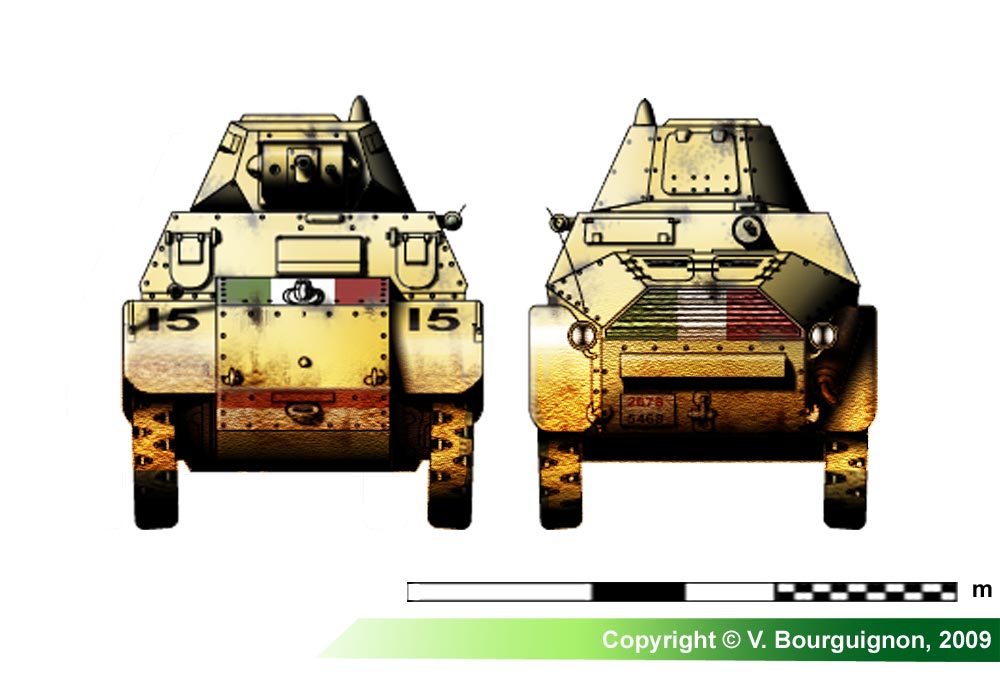

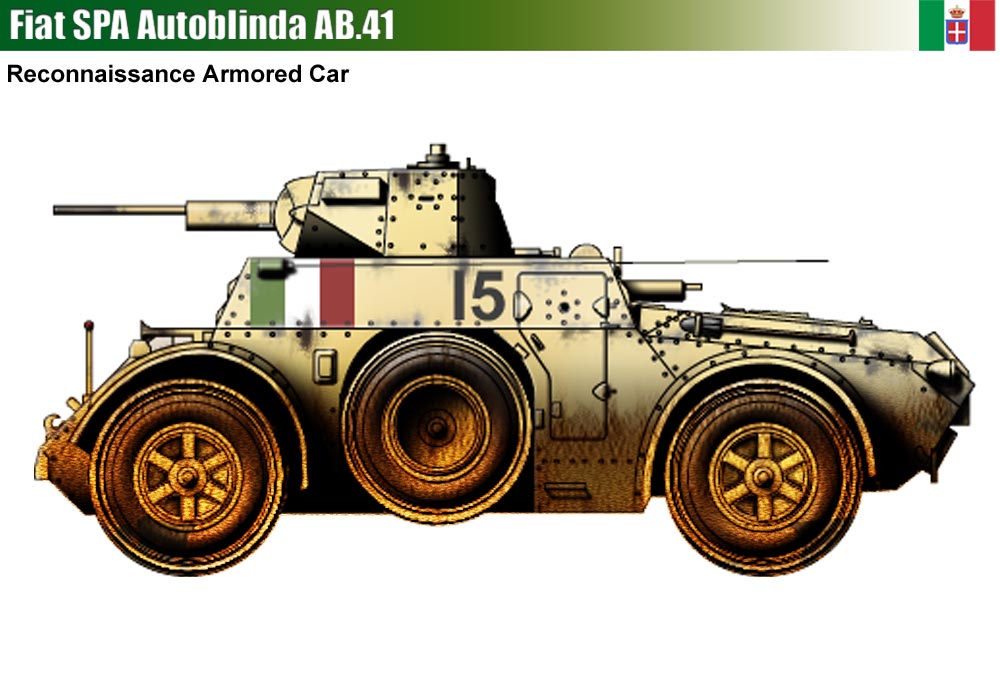

AB 41

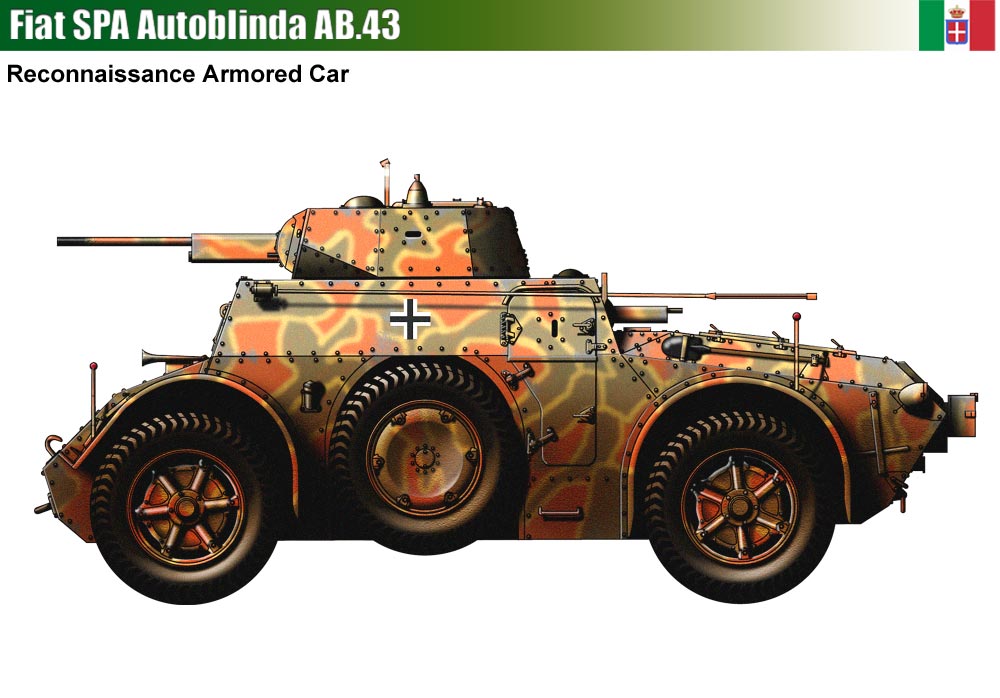

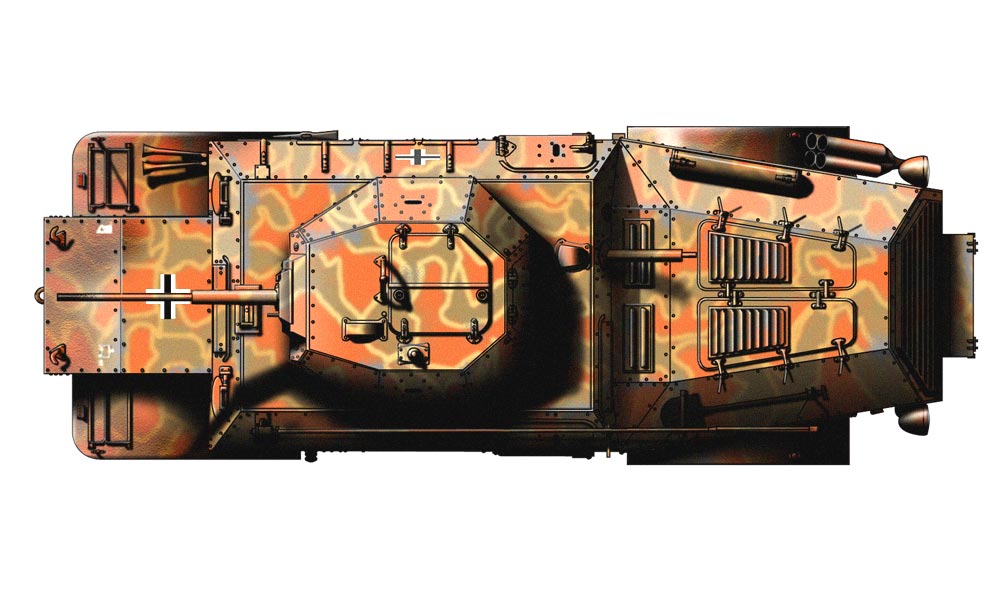

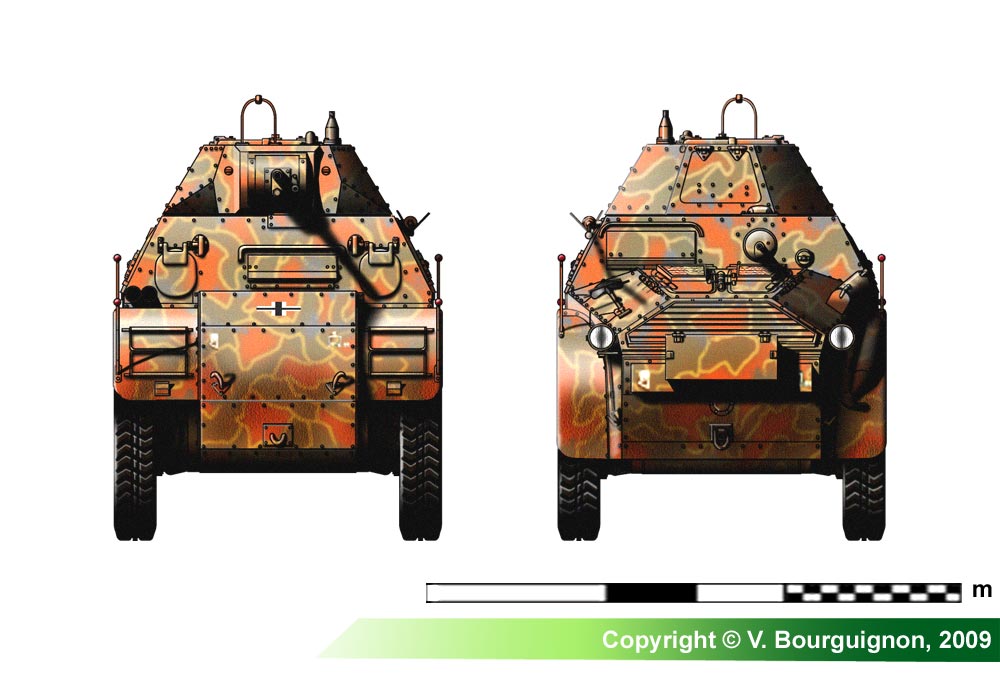

AB 43
Merci à Vincent pour son autorisation

Pour résumer l'ensemble :Comment différencier une AB 41 d’une AB 43 ?
La tourelle ;
tout d'abord elle est beaucoup plus large et basse et son accès qui se fait par une trappe fermée par deux volets ; Elle ne possède pas de fente d aération comme sur la AB 41 . Vous trouverez aussi le support de la mitrailleuse antiaérienne Breda 38.
Le châssis
Sur le glacis avant le bouchon du réservoir a disparu car le réservoir a été éliminé mais il possède 2 supports de jerrycans sur les garde-boue
A l'arrière un dispositif de lance grenade fumigène (DREB) et un container abritant les fumigènes de réserve.Il était prevu un systeme de gonflage internes des pneux
Il y eu des études portant sur l adoption dans la tourelle des canons 50/38 allemand et 50/42 .
L’AB 43 de série aussi appelée AB4/43 pour pas la confondre avec le prototype italien avait un schéma de camouflage « ad amebe » c'est-à-dire avec un vert de base sur lequel des grosses taches marron tirant sur le rouge avait été disposées
Un filet de jaune sable courant entre les tâches séparait les deux nuances
Les pneumatiques de l'AB43 étaient du type Artiglio.
Cette auto mitrailleuse combattit pour la première fois avec les Allemands contre les Alliés qui avaient débarqué à Anzio.
Je tiens tout particulièrement à remercier mon ami Daniele Gugliemi qui m'a permit de mettre de l ordre dans ce dossier ainsi que les sites italiens Modellismo piu et Cavalerria Italiana qui me permettent de publier les photos d'un engin réel conservé en Italie.
D'après les indications il existe 3 AB43 survivantes en Italie.
Caractéristiques.
Poids 7.360 tonnes
Equipage 3 possibilité d'embarquer un 4° homme
Longueur 5,410 avec le container arrière pour les fumigènes
Hauteur 2.480
Largeur 1.935
armement
1 mitrailleuse Breda 35 de 20mm (408 coups en dotation )
Equipement radio Marelli RF 3 M.
Moteur essence SPA ABM 6 cylindres en ligne 100 Cvx
Vitesse 81 km heure/route
Vitesse 30 km /heure/ Tout Terrain
autonomie 460 km.


Autres Photoscopes (Others Walk Around )    1   2



AB 43. PzSp Wg AB43 203 (i)
The evolution of AB41 was decided in 1942 when the first vehicles arrived just in regiment
 It was decided to render such equipment more suited to the North Africa. plains The first change was the increase in engine power and at the same time it was decided to renounce the post of double driving and defensive arms in the rear
The vehicle was immediately ordered between May and July 1942 and 400  vehicles were ordered
But events in North Africa will upset the forecasts.
The prototype called AB42 was therefore constructed to 1 vehicle  The antenna was shifted to the right rear headlights have given way to a lighthouse at the centre of single glazing and only one spare wheel, took seat on the right side of the vehicle, while the left side receives jerrycans. This model was a model of transition. It is also decided to built a model AB 42 Commando for company commanders; an order for 150 devices had been placed.
Meanwhile a model derived directly from the AB 41 is constructed. This is the model Ab43 and it is the ultimate avatar of this series
The big difference between the two models is the adoption of a turret enlarged studied for the model 42 and equipped with a 47 / 40 mm gun.
This turret planned for the war in the desert was much lower than the AB41 without vent slot sides.
It acceded to the turret by a hatch superior equipped with 2 gates As the AB41 the vehicle had a double driving position; Access to the driving post was always by two gates style stables The floor was protected against landmines and Smoke dishargers  were fixed on the rear of the chassis. On the front fender were supports for  jerrycans
The engine receives a new braking systeme  from the chassis 55784
The production of AB43 beginning after the armistice  also this AB 43 was not used by RE   mostly the  Germans under the name AB43 (the Italians give the name Abm 43 or AB41/43 to distinguish it from prototype AB43 armed with a 47 mm cannon, which had been filed in May 1943) .60 were built in 1944 and 42 in 1945, and some  incomplete chassis. The total production was far of the German previsions who expected 310 machines  ( 240 armed with 20 mm gun and  70 with the 47mm gun )
AB was outwardly  alike at the AB41 except for the turret
The survivors were recovered by the Italian troops and were used by the carabinieri and Celere after the war
There was also a tanker version of the AB 41 with  ammunition  supply which has rendered great service.
To summarize all: How differentiate AB 41 of  AB 43?
The turret;
First of all, it is much broader and low and access is being done by a closed door by two hatchs, it has no ventilation slot d like at the AB 41. You will also find the support of the anti-gun Breda 38.
The chassis
On the glacis  before the tank cap has disappeared because the tank has been removed but it has 2 jerrycans media on the fender
At the back of a smoke grenade launchers and a container housing smoke munition in réserve.A  internal system inflation of the tires was expected
There have been studies for the turret  an adoption of  German guns  50/38 and 50/42.
The Series AB 43 also called for AB4/43 not be confused with the Italian prototype had a camouflage pattern of “ad amebe " with a green base on which large brown spots pulling on the red had been arranged
A net current yellow sand between tasks between the two shades
The tyres were of the type AB43 Artiglio.
This Armoured car fought for the first time with the Germans against the Allies who landed at Anzio.
I would particularly thank to my friend Daniele Gugliemi which allowed me to put the order in this documents and the Italian sites and Modellismo piu Cavalerria Italiana that allow me to publish photos of a real device kept in Italy.
According to the indications there are 3 AB43 survivors in Italy.

Specifications

Weighing 7,360 tons
Crew 3 can carry a 4th  man
Length 5410 with the container back for smoke
Height 2,480
Width 1,935
Weaponery
1 machinegun Breda 35 of 20mm (408 coups reserve)
RF radio equipment Marelli 3 M.
Engine gasoline SPA ABM 6-cylinder in-line 100 Cvx
Speed 81 km / hr / road
Speed 30 km / hour / All Terrain
Autonomy 460 km.


 Thanks to website Modellismo + and Giorgio Briggà
