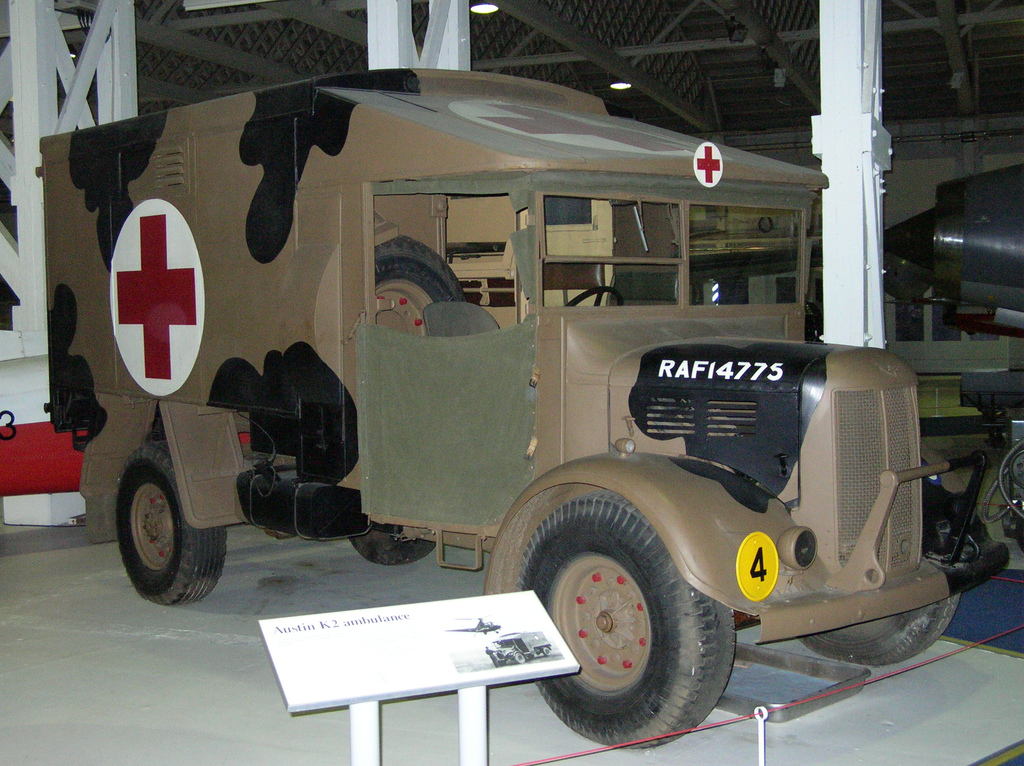

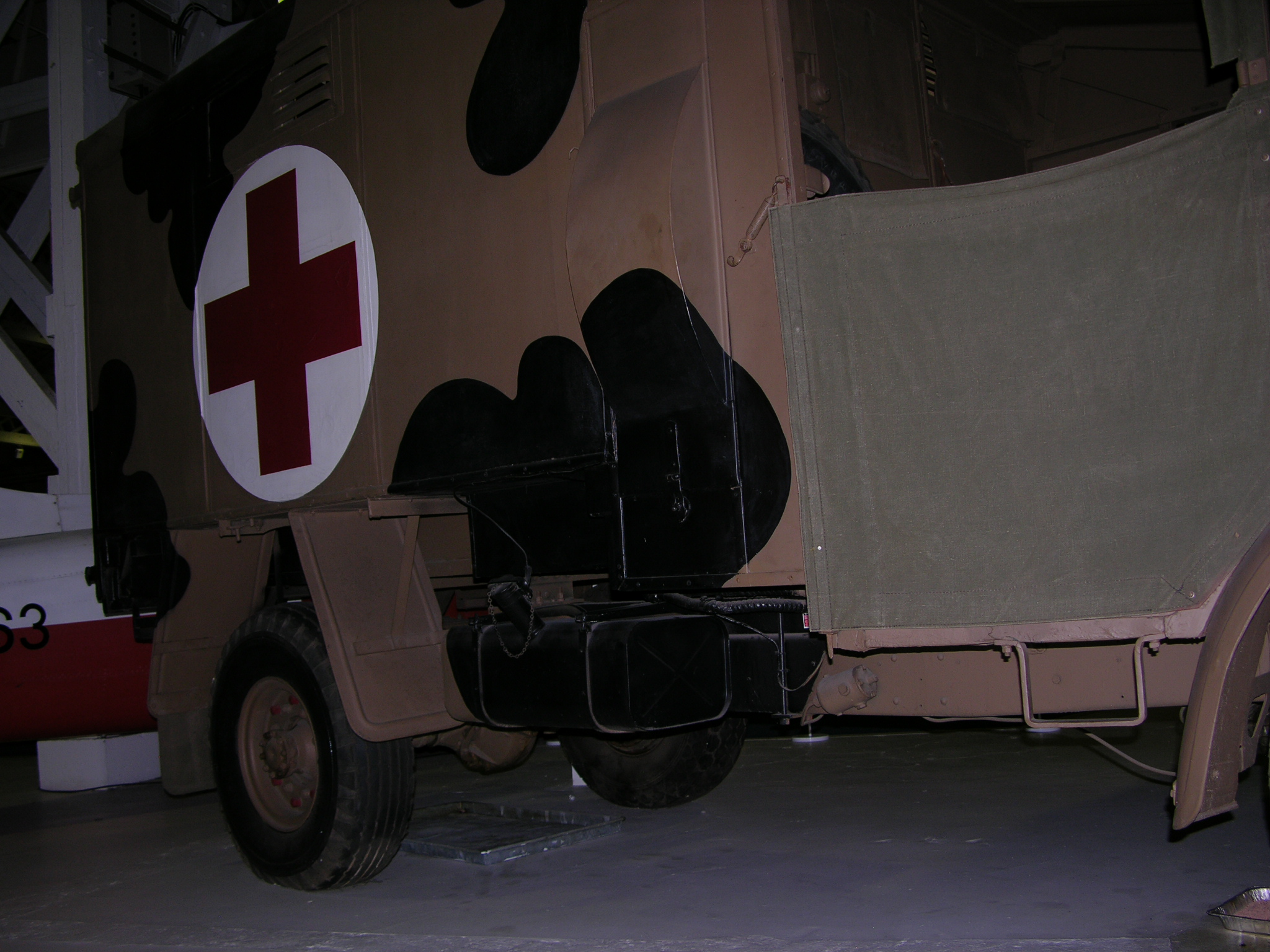

Austin K 2 Y Ambulance

Austin K 2 Ambulance
English Translation

Historique Voir ICI
History Click HERE

Autres Photoscopes (Others Walk Arounds )    1    2     3

Voir Aussi Autres Photoscopes  See Also Others Walk Around

Historical: The Austin K2/Y was introduced in 1939, and remained in production until 1945. The chassis was derived from the Austin Motor Company's K30, a 30 cwt open-cabbed military truck.
The K2/Y was the most common British Heavy Ambulance in WW II, known as the "Katie", used by all services.
The body was of simple construction, a wood frame covered with painted leather-cloth, insulated and accommodating four stretchers or eight sitting patients. It was known as the No. 2 Mk I/L, developed by the Royal Army Medical Corps and produced by Norwich-based coach-builders Mann Egerton. It accommodated an attendant and four stretchers or ten sitting casualties. Fresh-air vents were mounted in the sides, roof an doors. A Clayton Dewandre hot water heater was installed for the comfort of patients. The truck/body combination was occasionally used as van for other roles, and fitted to other vehicles like the Bedford ML and Morris-Commercial CS and CD respectively.
More than 13.000 produced at Austin's Longbridge works where production was almost continuous from 1940 until the war ended.
Length: 5.49 m
Width: 2.21 m
Height: 2.79 m
Weight:
Engine: Own 6-cylinder, 3.462 cm3
Horsepower: 60 at 3.000 rpm.
Transmission: 4-speed.
Brakes: Hydraulic.
Tyres: 10.50 - 16.
Fuel type: Petrol.
Fuel capacity:
Range:
Crew:
Additional: Top speed was 88 km/h
