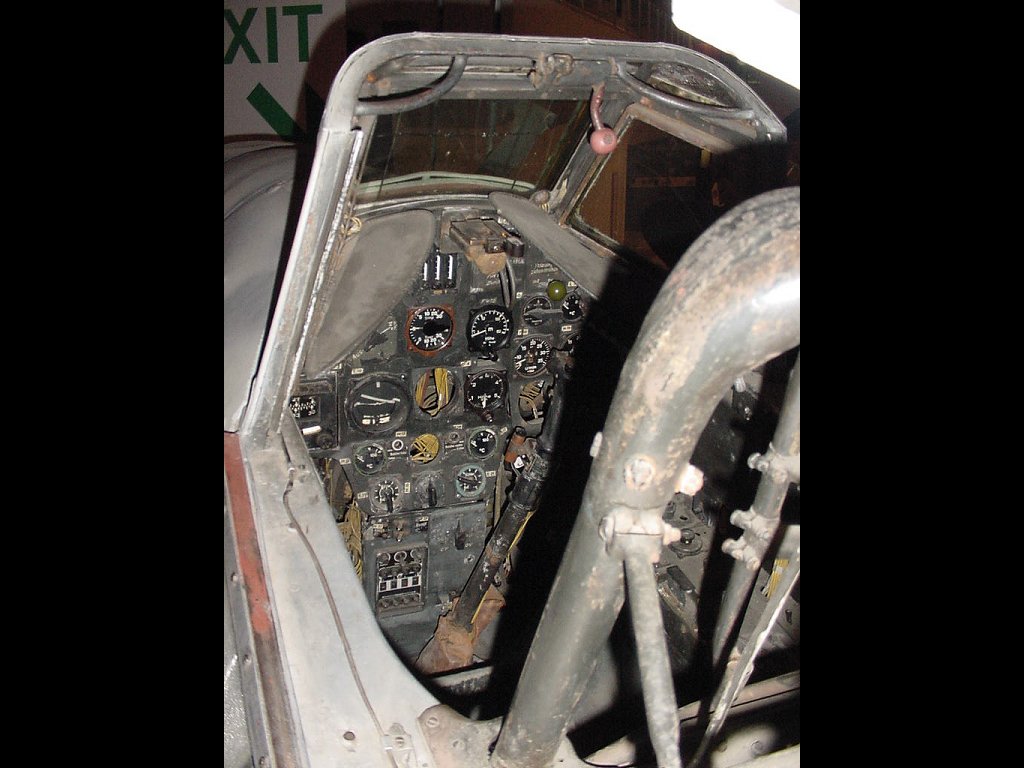

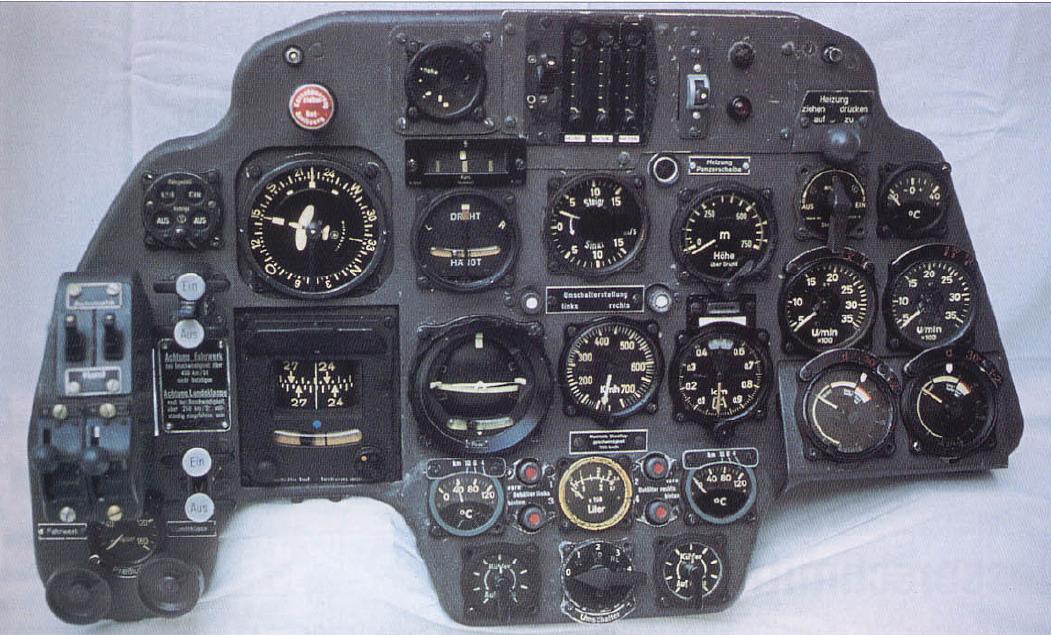

Messerschmitt Bf 110
French Version
walk around HERE



The Messerschmitt Bf 110 was a twin-engine heavy figther or Zerstörer ( Destroyer) designed as a strategic long-range heavy fighter capable of escorting bombers to and from their targets He was erroneously called Me 110 developed from the “Armed Aircraft III” specification issued by the German Air Ministry in 1934.
This aircraft that did not match up to Luftwaffe expectations managed to serve Germany throughout the Second World War in long-range escort fighter, fighter-bomber, reconnaissance, ground attack and night fighter roles
However, it was soon found to be ineffective at its role it was too heavy and not maneuverable enough to compete with the single-engine fighters in combat.
Other lacks it is badly exposed to fire from behind the pilot when his heavy armaments was all trained ahead and he had arlor only against the head-on attack. It is light construction so impact at close range often caused the Zerstörer to disintegrate ,and finaly the Bf 110 had trouble competing with smaller fighters, and the pilot couldn't always coax out of it the necessary speed or turns to beat a hasty retreat if challenged.
This aircraft the baby of Herman Göring nicknamed it his Eisenseiten ("Ironsides ) was in service in the luftwaffe during all WW2 This machine was required by Marshal Goering to equip the elite "Zerstorer" formations that he envisaged had to be capable of penetrating deep into enemy territory, possessing sufficient range to accompany bomber formations.This Kampfzerstörer (battle destroyer) could be have a long range and an internal bombload. Specifically, the request called for a twin-engine, three-seat, all-metal monoplane that was armed with cannon as well as a bomb bay However it was not very manoeuvrable. This was the design’s fatal flaw, and would get worse as more and more equipment was added to the aircraft during the war.
Development work on an improved type, Me 210 that was to replace the Bf 110, begun before the war started, but follow some problems he result that Bf 110 was here until the end of the war in various roles, alongside its replacements, the Me 210 and the Me410.
The Messerschmitt Bf 110 was an aircraft criticized for its failure during the Battle of Britain, while its successes in other fields have been largely ignored.
.In 1934 Luftwaffe need a machine to equip the elite "zerstorer" formations that he envisaged had to be capable of penetrating deep into enemy territory, possessing sufficient range to accompany bomber formations. Professor Willy Messerschmitt began design studies for such a warplane towards the end of 1934 at the Bayerische Flugzeugwerke at Augsburg his problems would have seemed insurmountable had he possessed a full knowledge of interceptor fighter development trends abroad For Professor Willy Messerschmitt fuel tankage necessary presented a serious weight penalty and called for the use of two engines if the "zerstorer" was to achieve a performance approaching that of the lighter interceptor fighter by which it would be opposed.
Yet it had to be manaoeuvrable if it was to successfully fend off the enemy's single-seaters
If Messerschmitt. possessed experience with single seat military aircraft He had been conceived in only a previous summer, his first warplane the single-seat Bf 109 he possessed no previous experience with twin-engined military aircraft when he commenced work on the Bf 110.
But at time Willy Messerschmitt at disposition for the motorization only the Junkers Jumo 210A of 610 hp Engine .This engine was one of the first production gasoline aircraft engine, produced just before tWW2 and he was the most powerful aero engine

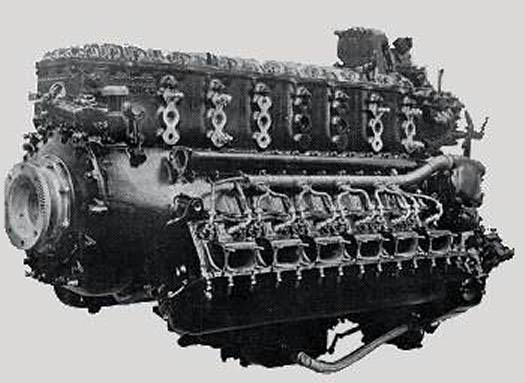

Development of the Jumo 210 started in 1931 for first ran in static tests on October, 22nd 1932. In 1933 he receive the official name of 210. The first flew take place on July 5th 1934 in a Ju W 33 The engine deliver only about 600 PHP instead of 700 HP initially aimed .

 Internet   Internet

It was a fast aircraft, reaching 508kms/h, only a little slower than the first Hurricane, which flew at about the same time, and actually faster than the Bf 109B
Nevertheless initial production starte in late 1934. Further development led in 1935 to the 640 HP The adjection supercharger increase performances to 670 HP
With the Jumo 210G first engine with direct fuel injection, developed by Dr. Lichte. This engine reach up to 700 HP but he was only available for fast aircraft like Bf 109 and 110 Arado 98 E FW 157 and 187 , HE 112 Ju 87 A
He was also used on Me 262 V1 for only the first test flight,
Production of the Jumo 210 came to an end in 1938
But we return to our Bf 110
Messerschmitt want to a pair of engines would provide the power needed for this new fighter Daimler-Benz Aktiengesellschaft was developing a new twelve-cylinder liquid-cooled inverted-vee engine, the DB 600 of 1000 HP and he premise that this engine would be available in tome for the prototypes,
So Messerschmitt began the design of the Bf 110.

  Internet   Internet

The first prototype Bf 110 made its initial flight on May 12nd 1936 with Dr. Hermann Wurster Some sources mistakenly credit the first flight to Rudolf Opitz, who has stated on numerous occasions that this honor belonged to the Messerschmitt factory's Chief Test Pilot, Dr. Hermann Wurster. Although Rudolf Opitz did add some flight test inputs to the Bf 110, it was not until after he became involved with flight testing Messerschmitt factory aircraft in the latter part of 1941 A key factor in the design was the use of two Daimler-Benz DB 600 engines; subsequent difficulty in obtaining enough of these to power development aircraft meant that the Bf 110 could not be tested during the Spanish Civil War.
Nevertheless, one aircraft was tested at the Rechlin evaluation centre in 1937 and proved to be very fast, although not as maneuverable as hoped. But Messerschmitt omitted the internal bomb load requirement from the RLM directive to increase armament element of the RLM specification. The Bf 110 was far superior to its rivals in providing the speed, range and firepower to meet its role requirements so the overall performance was considered reasonable although the prototypes were prone to some swing on both take-off and landing.
Me 110 versions
Despite obvious shortcomings, the Bf 110 entered service
Bf 110 A-0

I t was nt ready for a mass production
This Bf 110 A 0 was built around the Jumo 210B engine, This engine was few powerful and reduced the speed of the aircraft to only 429 km/h.. He was armed with four 7.9 mm MG 17 in the top of the nose, and one rear-firing 7.9 mm MG 15 in the observer’s cockpit.
Bf 110 B-0
pre-production version were built be built around that engine with DB 600A engines
Bf 110 B-1

 MG 15  MG 17

The Bf 110 as 2 Jumo 210G.engines This gave better performance than the A-0, but still not as good as had been planned. The B-1 had its firepower increased with the addition of two 20 mm MG FF cannon in the bottom of the nose with also the four MG 17s and rear-firing MG 15 It had been hoped to test out the B series in Spain, but the civil war ended before that could happen.

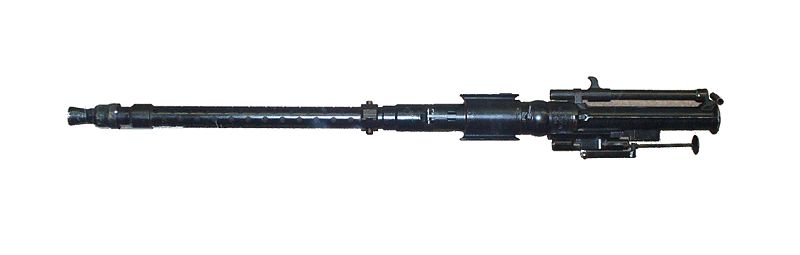

The 20mm MG FF was developed by Ikaria of Germany in 1936 as a derivitive of the Swiss Oerlikon FF F cannon, which was license-produced in Germany built by Borno, Rheinmetall Borsig, and Mauser
. The weapon suffered some drawbacks in that the drum feed mechanism limited its usefulness in fighter by limited ammunition capacity, initially limited to 60 round but later raised to 90 rounds per gun.He fire 520rouds/mHigh Explosive Incendiary Armor Piercing

Bf 110 B-2
reconnaissance version with a camera in the nose
Bf 110 B-3
conversion trainer, without gun He remained in use longer

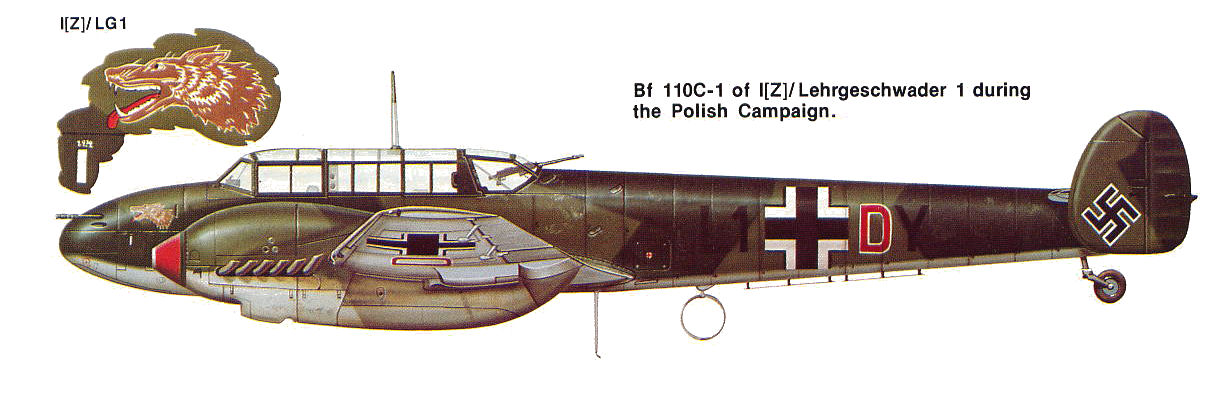

BF 110 C-1

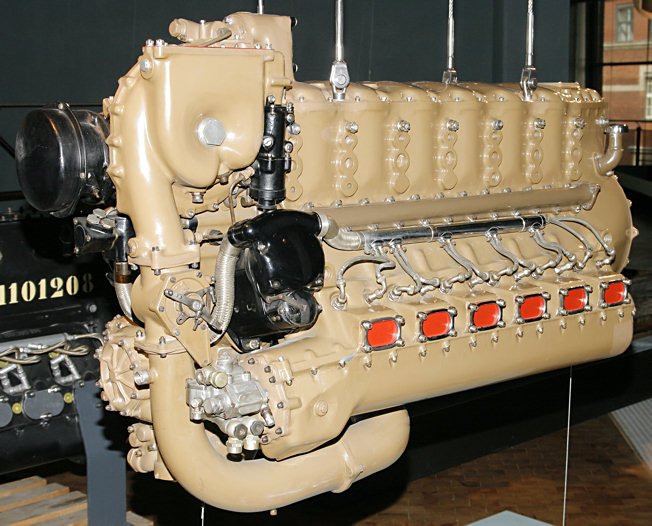

He was the first production version motorized with theDB 601A engine, with a asspeed increased to 349 mph He was armed with four MG 17 and two cannon in the nose, and a single MG 15 machine gun in the observer’s cockpit.
Bf 110 C-2
Similar to the C-1 but with the FuG 10 Lorenz High Frequency radio instead of the FuG IIIa used in the C-1. (april 1941 )

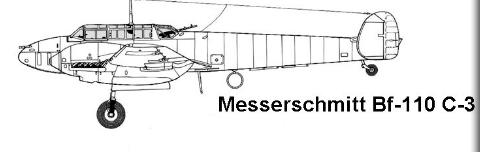

Bf 110 C-3

He was the same as the C 2 with a improved version of the MG FF cannon (may 1940)
Bf 110 C4
9 mm armour added to protect the pilot. July /August 1940
Bf 110 C-4/B
fighter bomber version. It was equipped with two ETC 250 bomb racks under the fuselage, allowing it to carry two 551 lb/ 250 kg bombs.Motoorized with the DB 601N engines, able to giving extra power at take off.
Bf 110 C-5
Reconnaissance version, without MG-FF cannon but with an Rb 50/30 camera installed in the floor of the cockpit.
Bf 110C-6
Modified Zerstörer version, with the two MG FFs replaced by one 30mm MK 101 cannon.
Bf 110C-7

fighter-bomber version, equipped with one ETC 500 bomb rack. It could carry the same weight of bombs as the C-4/B, but could take a wider selection of bombs.
Bf 110 D1/R-1

This version was a long range version was developed in part to deal with the long distances involved in the campaign in Norway, and to give it a longer effective range as an anti-shipping aircraft.

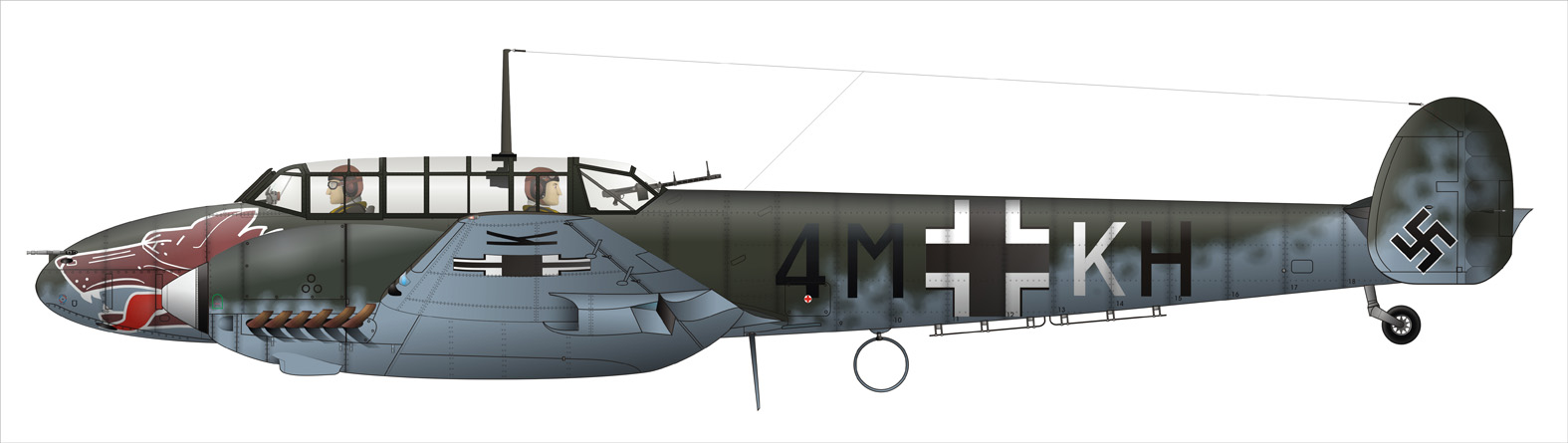

The Bf 110 D1/R1 was a long range version of the Bf 110, with a massive 1200 liters external belly tank below the fuselage. But this tank had impact on the aircraft’s performance( May 1940 )
Bf 110 D-1/R2
Fixed tank was replaced by two 900 liters drop tanks, carried under the outside. They gave at the aircraft an even longer range, (but improved the performance )
Bf 110 D-2
He carried the ETC 500 bomb rack, capable of taking two 500 kg bombs, and two wing mounted 300 liters drop tanks. D-3
Bf 110 D-3

Long range shipping patrol version with two 900 or 300 liters drop tanks and a ETC 500 bomb rack. Space was made in the fuselage for a two man life raft, in case the aircraft was shot down while far out to sea.
Bf 110 E 1

The variant of Bf 110 /E appeared in 1941 when Luftwaffe expected the Me 210 to replace the 110 so Bf 110E had a short production run, being replaced by the Bf 110 F in the summer of 1941.
He was powered by the DB 601N engine. With four ETC 50 bomb racks under the wings. For 50 kg of bombs each, and combined with the ETC 500 rack under the fuselage which could carry two 500 kg bombs
The Bf110E- can carry a total bomb load of 1400 kg.
Bf 110 E-1/U1
Night fighter equipped with the Spanner Anlage passive infra red device, which gave the pilot a limited chance to spot the exhaust flare from British bombers. But quickly British acted to muffle that flare, removing the main heat source and rendering the passive infra red system almost useless
Bf 110 E1/U2
Night fighter 2nd version with a third crew member to act as a full time rear-gunner, allowing the observer to concentrate on his other duties
Bf 110 E-2
E-1 with improved internal fittings and equipment.
Bf 110 E-3
Reconnaissance version, with camera fitted in the floor of the cockpit It could c arry two drop tanks, in either 300 or 900 literz sizes
Bf 110 F1
The F series was initially expected to replaced by the Me 210 . She appeared in the summer of 1941. and he remained in service with the Luftwaffe to the end of the war
Fighter-bomber version of the Bf 110F. with one ETC 500 bomb rack under the fuselage and four ETC 50 bomb racks under the wings
Bf 110 F-2


F-2 had the bomb racks removed to improve performance armed with four 21 cm WG 21 rockets under the wings The F-2 could reach a maximum speed of 539 kms/h at 7000 meters
Bf 110 F 3
Reconnaissance version, with a camera mounted in the floor of the cockpit
Bf 110 F4
first version to be designed specifically as a night fighter.
He was equipped with the FuG 202 Lichtenstein aerial interception radar, and after some delays radar equipped F-4s entered service in the late summer of 1942. (the G-4 did not appear until February 1945,
1850 were produced before production until February 1945.
Bf 110 F4/U1
Schräge Musik (Jazz ) version or twin upward firing cannon fitted in the rear of the observer’s cockpit
Bf 110 G 1
The only significant change between theF and G versions was the use of the new DB 605 engine The pre-production Bf 110G-0 appeared in May 1942 and production of the Bf 110G ended in February 1945
Fighter-bomber version of the aircraft. However, after production of the similar Bf 110F-1 was ended work on this version was cancelled .
Bf 110 G2

He was an heavy Zerstörer entered front line service in January 1943 on the Russian front. Its first combat experience came in the aftermath of the fall of Stalingrad. Zerstörer units played an important role in slowing down the Russian advance in early 1943, acting as a ground attack aircraft.
As heavy fighter (Zerstörer) the early versions were armed with four 7.9 mm MG 17s in the upper nose (each with 1000 rounds) and two 20 mm MG FF/M cannon in the lower nose (each with 180 rounds). The observer had a single 7.9 mm machine gun facing backwards from his cockpit.
This basic firepower was soon upgraded. The nose cannon were replaced by the MG 151/20 20 mm cannon (400 rounds for the left gun and 350 for the right). The observer’s gun was replaced by a MG 81Z twin machine gun with 750 rounds per gun. Older models of the G-2 could be upgraded to this standard using the U1 kit
Bf 110G 3
Llong-range reconnaissance version It was similar to the G-2, with RB 50/30 camera mounted in the rear cockpit. It had a short lifespan, entering production in January 1943 and being phased out in favour of the Ju 88D and Me 210/410 in the summer of that year. The remaining G-3s were converted to G-2s and sent to reinforce the zerstörer units
Bf 110 G4

Nigth Figther He was the most successful version of the Bf 110G. Over 1,850 of this version were built between January 1943 and February 1945. From the autumn of 1943 responsibility for the development of the Bf 110G passed from Messerschmitt to Gotha
Iinitial version of the G-4 was armed with 20-mm MG 151 cannons and four 7.92 MG 17s and carried the FuG 202 Lichtenstein aerial interception radar. The radar equipment had to be constantly updated, first to the FuG 212, and then when that was jammed by the British to the FuG 220 combined with the FuG 212.
Bf 110H
He was the final version of the Bf 110 series. Work on the Bf 110H began in 1943 but on 24 February 1944 USAAF bombed the Gotha works, destroying the test facilities, so the prototype Bf 110H has a delay of by at least six months But on September 1944 development work on the Bf 110 was curtails, and in November 1944 the aircraft was not included in the Emergency Fighter Program .
It was to be powered by the DB 605E engine and he had 2 MK 108 cannon each with 135 rounds and 1 MK 103 cannon with 140 rounds. It would be equipped with 2 ETC 500 bomb racks under the fuselage and either 4 ETC 50 bomb racks or 4 NeWe 21 cm rockets beneath the wings.
Bf 110 H-4
night fighter
Bf 110 H 5
single seat heavy fighter.
The removal of all the observers equipment would provide a significant improvement to the overall performance of the aircraft.
Others Construction modification sets (Umrüst-Bausätze )
These kits were fitted at the factory.
fitting of two MG 151/20 mm cannon in the lower nose. This was used to bring early production models up to the normal G-2 standard, and to convert G-3 reconnaissance aircraft back to the G-2 standard.
Mount for the FuG 202 and 212 AI radar sets that increased the angle they worked at but reduced the maximum range. It may have been used in combination with the FuG 220 radar.
Combination of the U5 kit and the FuG 221 radar system. This radar system was abandoned in favour of the FuG 227 Flensburg radar.
GM 1 nitrous oxide power boost. This could increase the power of the engines by 300 hp for up to 19 minutes, but it reduced the normal performance of the aircraft, and required the removal of the rear firing machine guns and was rarely used. Also known as the R2 kit.
Increased internal fuel tank with another 540 litres It increased the range of the aircraft by 320 kms, but causes such a severe reduction in performance that it was abandoned after some field testing.

 MK 108

Two 30 mm MK 108 cannon, with 135 rounds for the right cannon and 120 for the left.
Auxiliary apparatus/ field kits (Rüstsätze)
These were normally added closer to the front line.
Addition of a 3.7 cm Flak 18 cannon beneath the fuselage, for use an anti-tank weapon. It was tested in April-June 1943 in Russia on a variety of aircraft. The Bf 110G performed badly with this kit and it was not proceeded with.
Alternative name for the U7 kit
Alternative name for the U9 kit
A combination of the R2 and R3 kits
The R1 and R3 kits combined. This would have produced an aircraft with very heavy firepower but little or no maneuverability


A combination of the GM-1 powerboost and the R3/U9 kit, but with the MG 81Z rear gun retained. This was tested in early 1944 but probably not used
300 litre drop tank fitted below each wing. This became almost standard on the Bf 110G

  Internet   Internet   Internet

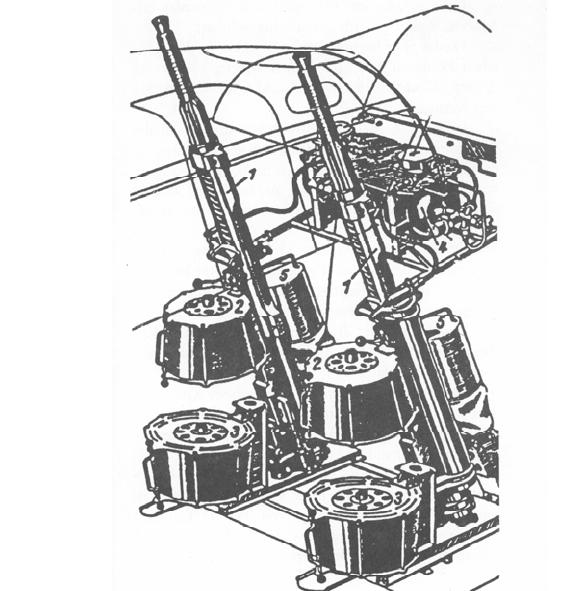

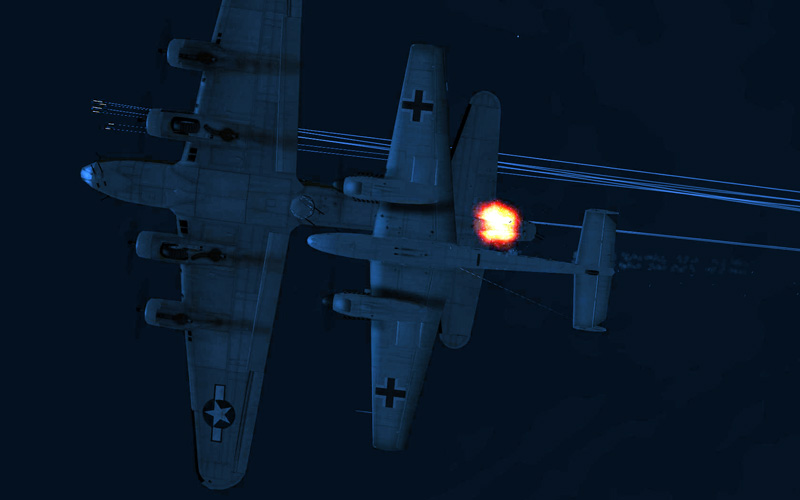

Schräge Musik (Jazz) kit. This consisted of two upward firing MG FF/M 20 mm cannon added to the rear of the observer’s cockpit. It would allow the pilot to fly underneath a bomber and then fire upwards into it
Upgraded version of R8, using two MK 108 30 mm cannon instead of the MG FF/M. This probably never went beyond unit testing
Streamlined 75 liters drop tank for oil, normally used with B-2
Two 900 liters drop tanks or two 300 liters drop tanks beneath the outer wing panels
Belly mounted twin MG 151/20 20 mm gun pack with 200 rounds per gun
Two ETC (elektrischer Träger für zylindrische Außenlasten fut ) 500 kgs  bomb racks beneath the fuselage
Four ETC 50/VIIId bomb racks beneath each outer wing panel
Two SD 2/XII racks carrying 24 bomblets
Two 21 cm WGr 42 rockets under each wing

Bf 110 at war
Bf 110 served with success from the begining to the end of WW2
Bf 110 lack of agility in the air was its primary weakness. After the succes of the earlis campaigns he suffred during the Battle of Britain He was redeployed as nigth figther, a role to which the aircraft was well suited.
After during Balkans Borth Africa and Eastern campaigns he was a good ground support as a potent Jagdbomber-Jabo . Later in the war, it was developed into a formidable night fighter, becoming the major night-fighting aircraft of the Luftwaffe.

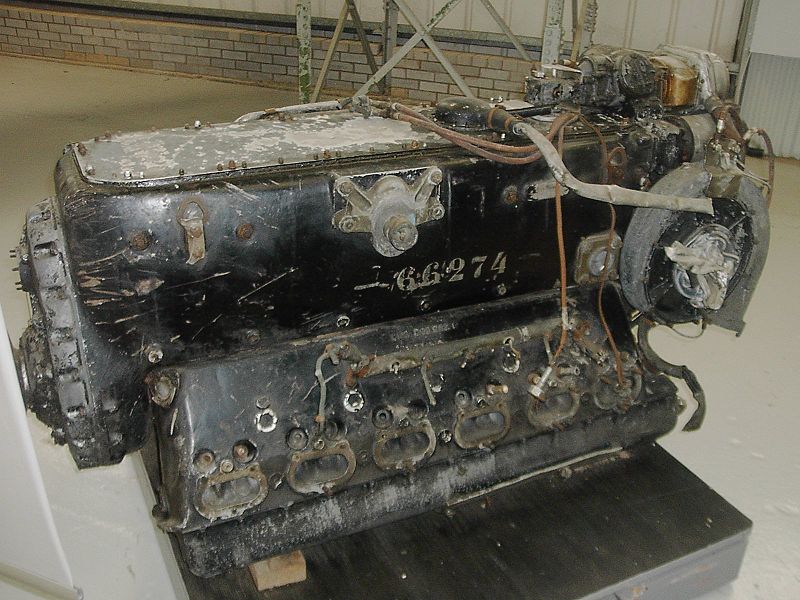

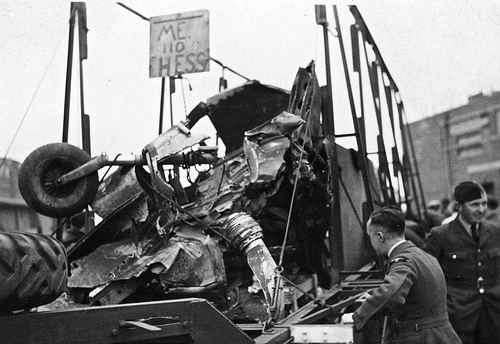

 Motor bf 110 Rudolf Hess  Internet Wrecks planes bf 110 Rudolf Hess  Internet

It was in a Bf 110 that Rudolf Hess, Deputy Fuhrer of Germany, flew solo to Scotland on the night of May 10,1941, in the hope of negotiating peace terms with Britain, without Hitler's knowledge

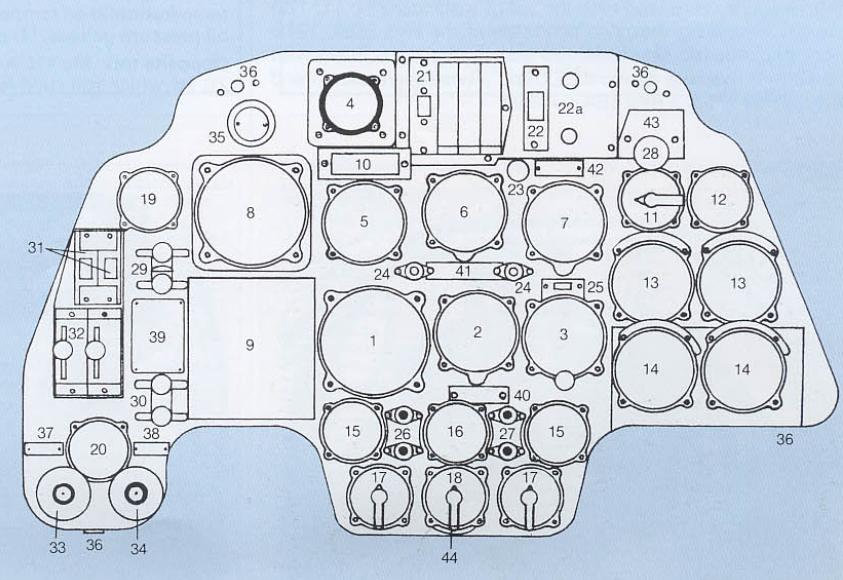

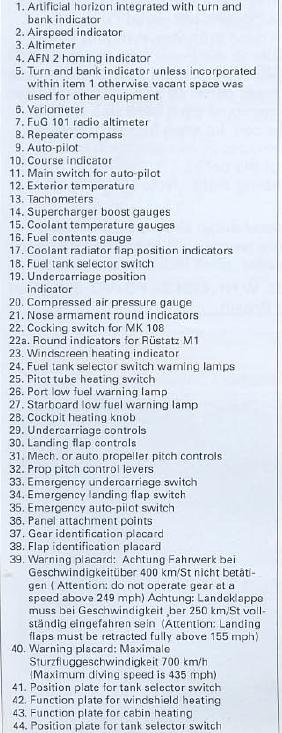

Technical Data  Me 110 G
Type Night Fighter
Weight empty 4500kg
Weigth Loaded 7000kg
Crew Two
Length 12.1m
Height 3.5m
Wing span 16.25m
Wing Surface Area 413 m2
Engine 2

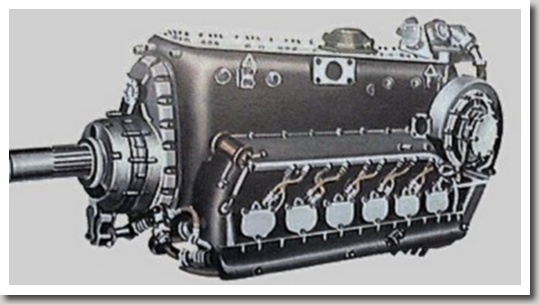

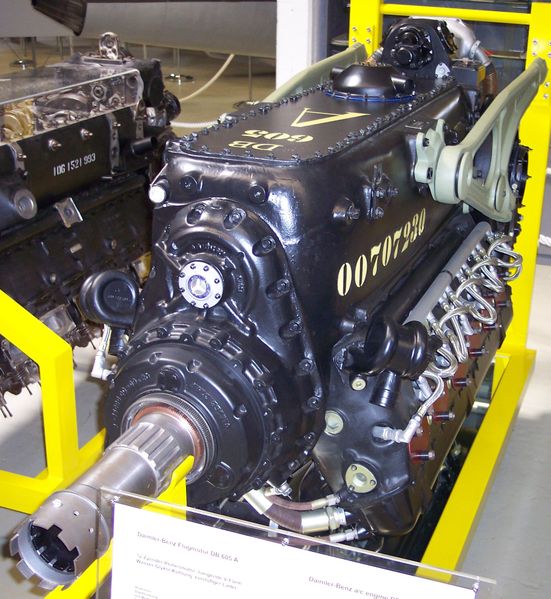

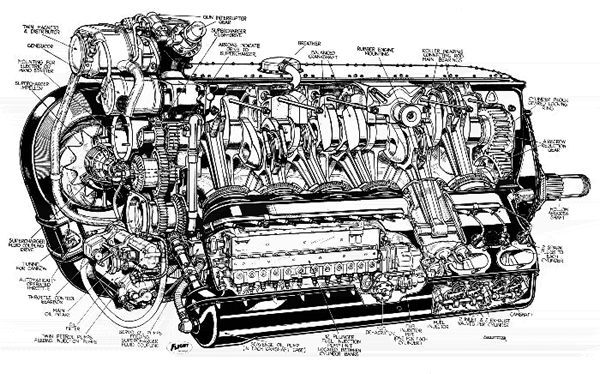

Model: Daimler-Benz DB605B-1 liquid-cooled, inverted V12
Horsepower 1475 CV
Speed maximum 349 mph (562 kph) at 22,965 ft (7,000m)
Range 850 kms at 5,000m
Service Ceiling:. (10,000m)
Depending versions
Nose: Fixed firing forward
Two 30mm Mk 108 Cannon with 135 rounds per gun

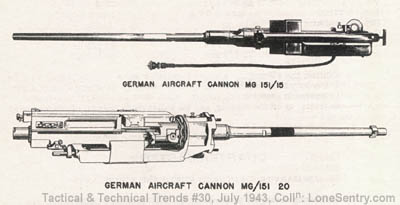

Two 20mm MG 151 Cannon with 300 rounds(port) and 350 rounds(starboard)
Two 20mm MG 151 Cannon in Shrage Musik Instatllation (Firing Obliquely forward)
Two 7.92mm MG 81 in rear cockpit
Waffenwanne 151Z ventral tray housing two forward firing 20mm MG 151 cannon
FuG 10P R/T Set
FuB1 2F Airfield blind approach reciever
FuG 227/1 Flensburg Homing System
Used to home in on British Monica tail warning
radar emissions.(Only fitted to some aircraft)
FuG 212 Lichtenstien C-1 Radar
FuG 220b Lichtenstien SN-2 Radar

The Bf 110 G
In 1942 He was take the decision to develop a more powerful version of the Bf 110 .
Work on the G series cars began in the summer of 1941, Bf 110G-0 differed from the Bf 110F in the installation of the engine DB 605B-1, which at the same size as a DB 601F, developed at the takeoff 1475 hp, while the emergency mode, at an altitude of 5700 m High power helped to raise the take-off weight to 9400 kg
Planned as the first production model of a heavy, full-time fighter Bf 110G-1 (different from the Bf 110G-pre serie by replacement MG FF cannons in the MG 151) was rejected in favor of Bf 110G-2.
Assembly line,started to go in May 1942
Bf 110G-2 differed from the Bf 110G-0 by the installation of new keels of feathers on the model of Bf 110F-4, The reinforced chassis mountings, allowed to raise the landing weight up to 8290 kg, Protection against rear attacks by replacing of the the MG 15 by a Spark MG 81Z with 800 rounds of ammunition.
The MG 81 was a belt fed 7.92 mm machine gun for fixed or flexible installations in World War II Luftwaffe aircraft, replacing the older drum magazine-fed MG 15.The MG 81 was developed by Mauser as a derivative of their successful MG34 infantry machine gun. Development focus was to reduce production cost and time and to optimize for use in aircraft. Developed in 1938/1939, it was in production from 1940 to 1945.

  Internet    Internet

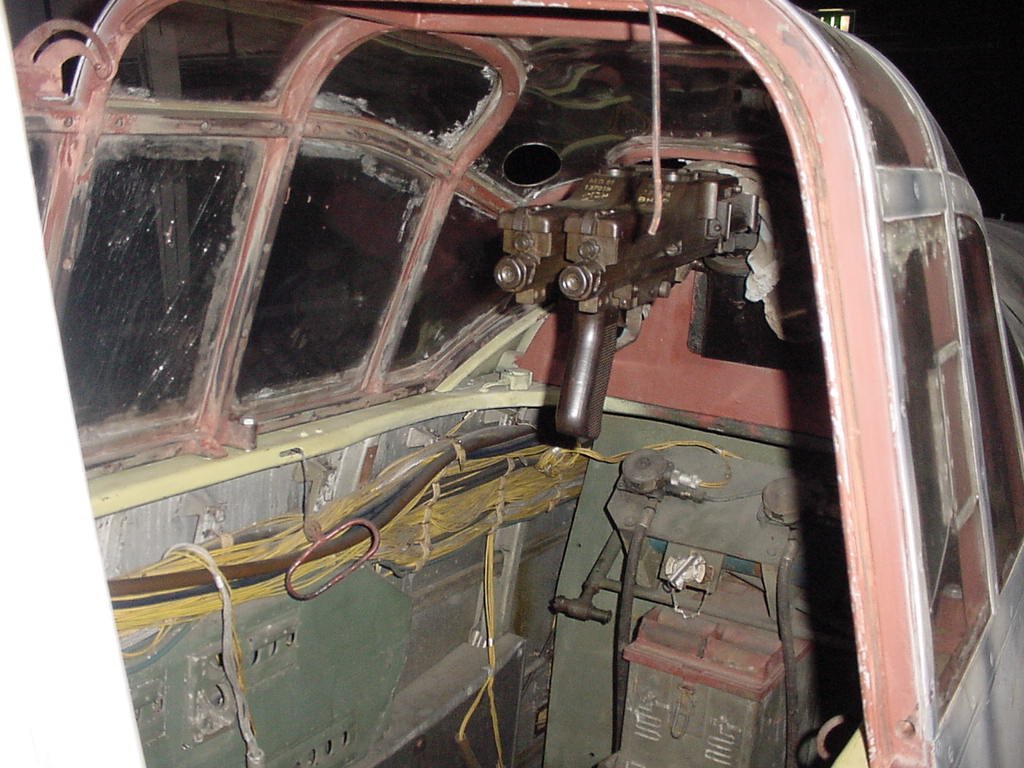

A special twin-mount MG 81 Z (Zwilling-twin) was introduced in 1942, which paired up two of the weapons on one mount, to provide even more firepower with max 3200 rounds/min without requiring much more space than a standard machine gun.
Technical data
MG 81
Weight : 6.5 kg
Length : 915 mm (965 mm with flash hider)
Rate of fire: 1400 – 1600 rpm (sS ammo)
MG 81 Z
Weight: 12.9 kg
Length : 915 mm (965 mm with flash hider)
Rate of fire: 2800 – 3200 rpm (sS ammo)
There were minor changes:
an additional 55-liter oil in the fuselage, improved equipment for cold starting the engine with a larger capacity fuel tank starter, refinement of the cooling system, installation of additional equipment.
Armament consisted of four 7.9-mm MG 17 machine guns with 1000 rounds of ammunition and two 20-mm MG 151 cannon with 650 rounds.
Under the fuselage were two ETC holder( elektrischer Träger für zylindrische Außenlasten ) 500, but they can be replaced by two 20-mm MG 151 cannon with 200 shells in the barrel.
Holders of two 300-liter tank under the console can be replaced by the holder of four ETC 50/VIII.
The Bf 110G-2/R1, was a version with a firepower incrasead developed by the autumn of 1942,
The "set" consisted of a 37-mm cannon VC 3,7 (Flak 18), This forced to withdraw two 20-mm cannon. VC 3.7 has the Muzzle velocity 1170 m / s and has proved effective when used against bombers coming without fighter cover. One hit, as a rule, led to the destruction of B-17. But the weight of the gun and the extra air resistance fairing did Bf 110 extremely vulnerable during a meeting with fighter escorts.
To improve the flight characteristics of the VC 3.7 installation in the DB 605B engines fitted with a system for forcing GM 1. 440-kg tank for GM 1 was put
Normal" mode provided the injection duration up to 45 minutes, and "extraordinary" - up to 27 minutes.
The total weight of plants, including a tank of high pressure with an empty weight of 180 kg, was 615 kg. This "set" was designated R2.
During 1943, four bow MG 17 machine guns were replaced with "set" R3 or a pair of 30-mm MK 108 cannon with 135 rounds in the barrel.
In other aspects of Bf 110G-2/R3 practically did not differ from the standard G-2. Bf 110G-2/R4 received both "set" R1 and R3
On Bf 110G-2/R5 use "sets" R1, R2 and R3.
In parallel with the Bf 110G-2 were developed by two further series of modifications of G: long-range scout Bf 110G-3

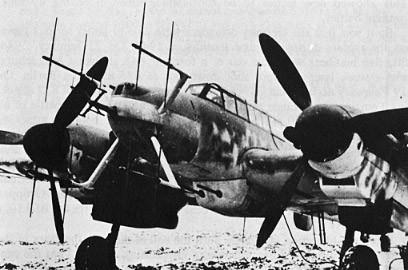

night fighter Bf 110G-4
Bf 110G-3, which went into series production in early 1943 - later than the Bf 110G-4, received one camera Rb 50/30 or 70/30, offensive armament consisted of four nasal 7.9-mm MG 17 machine guns, and under the wing could hang two 300-liter tank.
Defensive armament consisted of one machine gun MG 81Z in the rear of the cabin and a fixed, 20-mm MG 151 cannon with 350 rounds.
G-3 has a ceiling of 5800 m and a speed of 557 km / h. The range with R3 set was to 900 km.
Bf 110G-4 has been to go from assembly lines during the summer of 1942

From the beginning, it's designed for the installation of radar. Equipment shall be subject to "factory set". Standard Bf 110G-4 had an armament of four 7.9-mm MG 17 machine guns with 1000 rounds of ammunition in the trunk and two 20-mm MG 151 cannons. MG 81Z defense provided with 800 rounds of ammunition.
The cabin has been enhanced to book, on the bottom of the cab armor . He receive the transmitter FuG 10P compromised defendant FuG 25 and the system of "blind" landing FuB1 2F. C
in April 1943 he FuG 10P replaced by FuG 16zy, which solved the problem of suppressing interference between the radio guidance system "Himmelbett and. Bf 110G-4/U1 received the same "set of factory installation, and that the Bf 110F-4/U1 - two 30-mm MK 108 cannon" Schrage music. "
In the rear we found always the MG 81Z
The first set of factory installation was a locator FuG 212" Liechtenstein "P-1, which is different from the simple production FuG 202.
The plane with him is called Bf 110G-4/U5. Instead of "mattress" antennas at the Bf 110F-4a in the nose is now considered only one antenna, which significantly reduces air resistance.
Bf 110G-4/U6 was like G-4/U5, but still had a direction finder FuG 221a "Roosendaal-Galbe" tuned to the wave of the British warning system "Monica", standing on the bombers. Antenna Roosendaal "just put in the nose.
Since February 1942, MIAG and Gotha surrender 577 fighters surrendered, but the average rate for 10 months amounted to 57-58 aircraft. Peak production was reached in November, when the 84 aircraft.
In early 1943 production Bf 110 continued to rise, increasing by 100%. Monthly production at 126 planes. By this time the Bf 110 as "hunters" were used only in the ZG 1 and ZG 26, and 13. (Z) / JG 5, but more often used as a scout and became the major night fighter aircraft aviation.
By early 1943 night fighter was expanded to 15 teams 390 capable fighters, most of them were Bf 110F and Bf 110G. Although the Ju 88C-6 has been gradually "leak" into the night fighter squadrons, they were completely re only two groups - I and II / NJG 2, which are also used as "hunters" on the Mediterranean theater. In addition to a small number of Do 217J and Do 217N, used in II and IV / NJG 1 and I and II / NJG 3, together with the Bf 110 and Ju 88C-6 in the IV / NJG 3, the rest of the fighters were armed with only "Messerschmitt". The latter, besides the above-mentioned parts used in I and III / NJG 1, III / NJG 3, I, II and III / NJG 4, I and II / NJG 5.
But Bf 110 had not had much success in the daily battles. For the pilots' night-light "was the usual reception of maximum convergence of the objective and the day they carried a heavy defensive fire from the bombers, not having an adequate supply of either the speed or maneuverability needed at an altitude of interception. Losses were so severe that the most experienced pilots, "night-light" forbidden to participate in daily battles
Trying to improve the characteristics of high-altitude fighter, at the option Bf 110G-4/U7 been forcing GM 1 system is modeled on the "set of field installation of" R2.
With this update the "Roosendaal" FuG 221 was removed and he was installed a new antenna "Liechtenstein" C-1 he become a distant night-fighter. But after testing in the Western Frisian islands the distant night-fighter was deemed uneconomic and the scheme was rejected
During the autumn of 1943 the assembly line has been normalized to set
the locator "Liechtenstein" P-1 with antennas in the nose
Installing the 37-mm Flak 18 cannon, GM 1, and replacement of MG 17 machine guns on two gun MK 108, respectively, gave versions of Bf 110G-4a/R1, R2 and R3.
With the advent of radar "Liechtenstein" SN-2, which was a response to the use of the English passive interference "vindow, was standardized Bf 110G-4b. Locator "Liechtenstein" P-1 from one antenna in the nose remained, along with reindeer horns "SN-2. The latter, while working at a frequency not covered by "chaff, had a minimum range of 400 meters - significantly more than was necessary for visual contact with the target.
This led to leave the P-1 with a minimum distance of 200 m. In addition to the set of "R3 (Bf 110G-4b/R3) Bf 110G-4b, and was equipped with" sets "R6 and 7. The first of these Bf 110G-4b/R6 is a combination of R3 with a system of forcing GM 1 ( "set" R2), and the second - Bf 110G-4b/R7 combination of R3 with an additional 540-liter fuel tank on the model of Bf 110G-4 U8.
1509 Bf 110 were manufacturing during 1943 , about half of which were F-4 and G-4.
By early 1944, consisting of a night fighter aircraft were formed, seven more groups. Losses incurred by the British bombing upon the Third Reich at the beginning of 1944, was forced to temporarily halt the massive raids.
By early 1944 he had finally solved the problem of the minimum range of radar "Liechtenstein" SN-2. This allowed to remove the P-1, on the aircraft nose.
With a locator FuG 220b "Liechtenstein" SN-2 aircraft called Bf 110G-4c. As in the predecessors, he placed "a weapon" R3, 6 and 7, the truth was another option - Bf 110G-4c/R4 the replacement of 30-mm cannons, the MK 108 on a pair of 20-mm MG 151.
The last series was the G variant Bf 110G-4d/R3, which differed from G-4c/R3 new radar antennas in the nose, had less air resistance. Planes were delivered with subtype direction finder FuG 227 / 1 Flensburg "configured on the English frequency systems" Monica ". Direction finder antennas placed on wings
Bf 110G-4 as a crew of two or three people, and the main problem was the lack of an aircraft radio operator leaving the damaged vehicle with a parachute.
To do this, first had to jump shooter, but if he was injured or killed, then leave the aircraft was not possible.
Bf 110 production in 1944, reaching 1,518 aircraft. Peak production was reached in September with 188 of the aircraft
At the same time affected by a serious shortage of fuel, which significantly reduced the fighting efficiency "night-light." The number of Bf 110 in combat units has declined by half.
Bf 110G-4 was used in a handful of allies and of Germany.

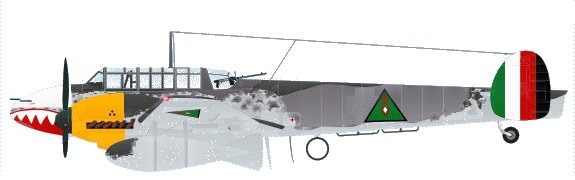

Italy receive Bf 110 G4 for 59 th and 60 th regiments.
Romania 1 st Romanian night fighter squadron
Hungary receive.6 aircrafts

At the beginning of 1945 according to the report at headquarters, consisting of Luftwaffe night fighter aircraft with the exception of Norway fully Bf 110 were armed with only II, III and IV / NJG 1 and I / NJG 3. For several Bf 110 in the II, III and IV / NJG 5 and I, III and IV / NJG 6, who were mostly armed with Ju 88. In the intelligence groups and "hunters" Bf 110 did not have. Latest Bf 110G alighted from the assembly line in March 1945 - only the first three months have been surrendered only 45 aircraft.
Even before the final sunset Bf 110 in the series had run another modification - Bf 110H, which in 1942 he produced in parallel with the Bf 110G. Considering the minor changes in design, the attribution of the new Bf 110 letters have been modified but in 1941, when the project elaborated a series of N, it is quite different from the previous version.
By the time mass production was restored Bf 110, the majority of features of the project Bf 110H was used for mass-produced versions of Bf 110G.
As a result, Bf 110H-2 differed from the Bf 110G-2, only the installation of the engine DB 605E, some increasing the rear fuselage, increasing the chassis, hydraulically remove tail wheel, new handle management
It was heavy fighter Bf 110H-2, with "sets" R1 and 2, the scout-bomber Bf 110H-3 model Bf 110G-3, but with the replacement of MG 17 machine guns at a pair of 30-mm MK 108 cannon, night-fighter Bf 110H-4 modeled on the Bf 110G-4 using the "factory set" 7 and 8

Bf 110H-4 / U7 and H-4/U8).


 Germany  Roumania  Italy




Copyright © 2003-2023 [Le Monde de la Maquette] et AMM- Tous droits réservés - Contactez l'Administrateur en cliquant ici

Ce site sans aucun but lucratif n’a pour but que de vous faire aimer l’ Histoire
Droit d’auteur
La plupart des photographies publiées sur ce site sont la propriété exclusive de © Claude Balmefrezol
Elles peuvent être reproduites pour une utilisation personnelle, mais l’autorisation préalable de leur auteur est nécessaire pour être exploitées dans un autre cadre (site web publications etc)
Les sources des autres documents et illustrations sont mentionnées quand elles sont connues. Si une de ces pièces est protégée et que sa présence dans ces pages pose problème, elle sera retirée sur simple demande.

Principaux Collaborateurs:

Gimeno Claude (+)
Brams Jean Marie
Janier Charles
Vincent Burgat
Jean Pierre Heymes
Marie Christophe
Jouhaud Remi
Gris Patrice
Luc Druyer
Lopez Hubert
Giugliemi Daniele
Laurent Bouysse

Nb de visiteurs:6161214
Nb de visiteurs aujourd'hui:228
Nb de connectés:16
